MT4ER40X82

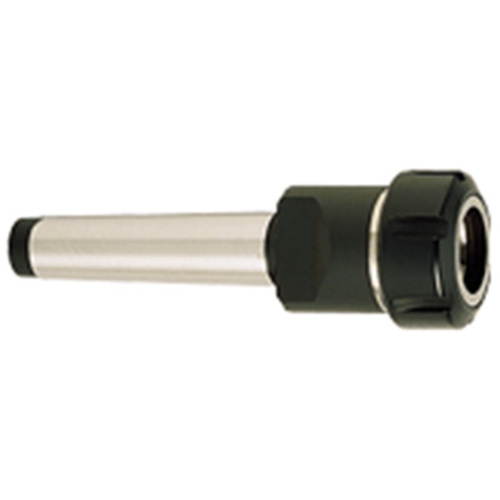

ER collet chuck holder with Morse Taper

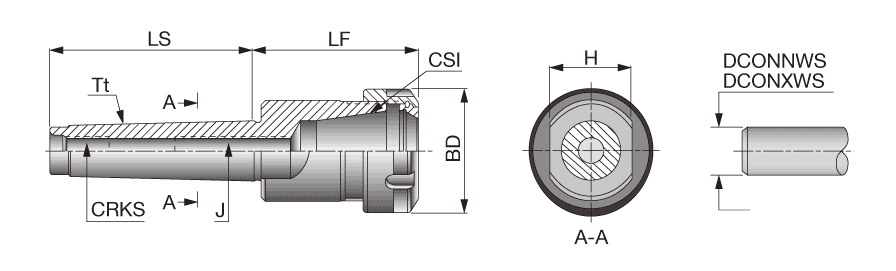

| Shank Size (SS) | MT 4 | Tool Type | Morse Taper |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Body Diameter (BD) | 63 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Shank Length (LS) | 102.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 81.5 mm | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features
| Family Description | ER collet chuck holder with Morse Taper | Country of Origin | INDIA |
Shipping Info
Package Weight
2.650
